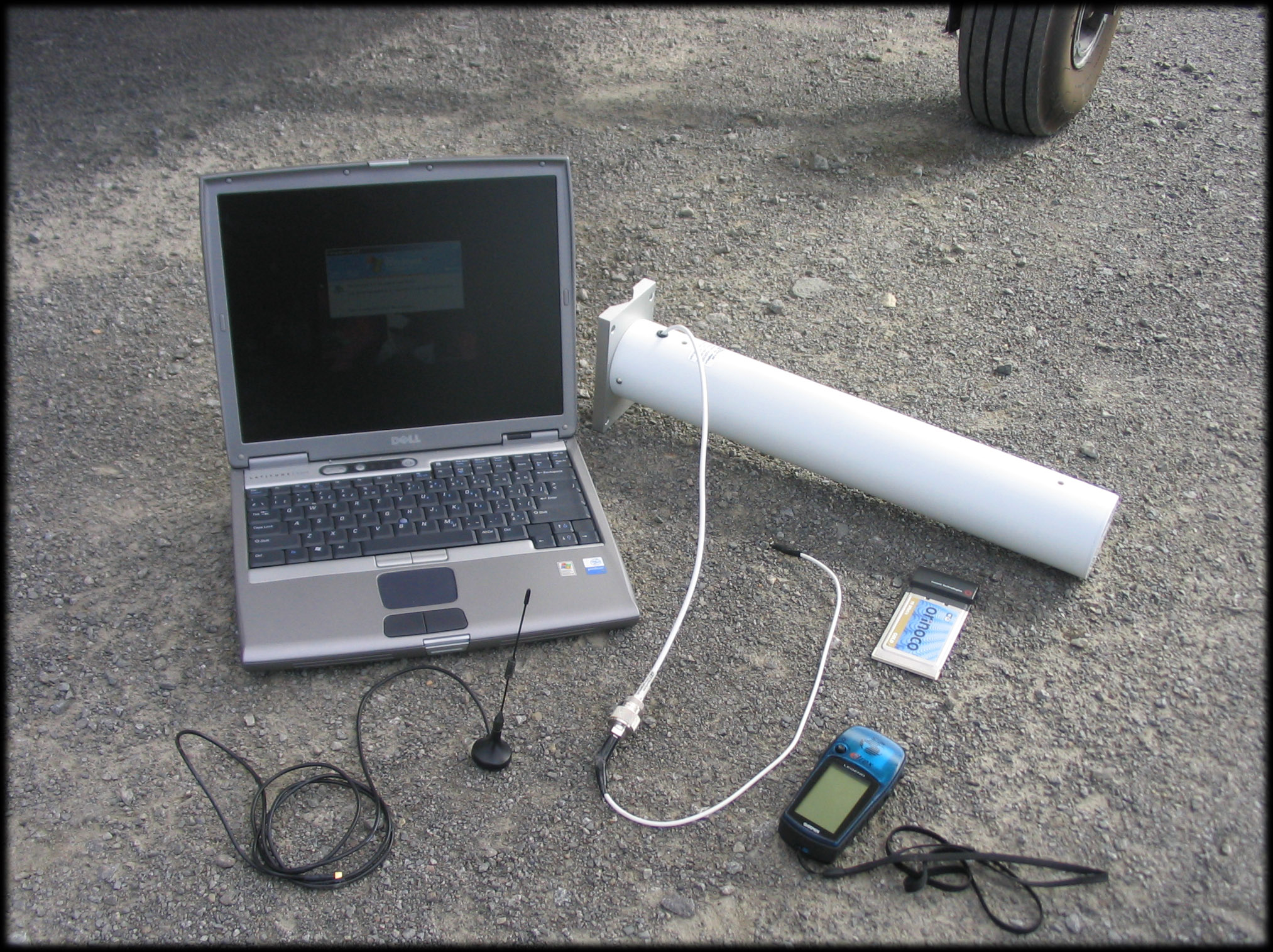

The hardware

<< Large >>

LAPTOPS

2x    Dell Latitude D600

ANTENNAS

Omni-directional:  Magnetic mount 1.5db gain 6inch wipe

Directional:  Yagi, 14 elements + N-Type Connector Pigtail adapter cable

Gain: 13.5 dBi

Beam width: 36°

VSWR: <1.22

F/B ratio: 25 dB

Impedance: 50 Ohm

Dimensions: 4.58”(h) 4.37” (w) 10.85” (l)

WIRELESS CARDS

2x    Lucent/Orinoco cards (Prism2 chipset) with external antenna connectors

GPS

Garmin eTrex Legend series

SOFTWARE

NetStumbler - Wireless access point interceptor

Garmin MapSource  - GPS Tracking software for route overlay

Map Renderer (GPS Visualizer) - This site is absolutely amazing !
